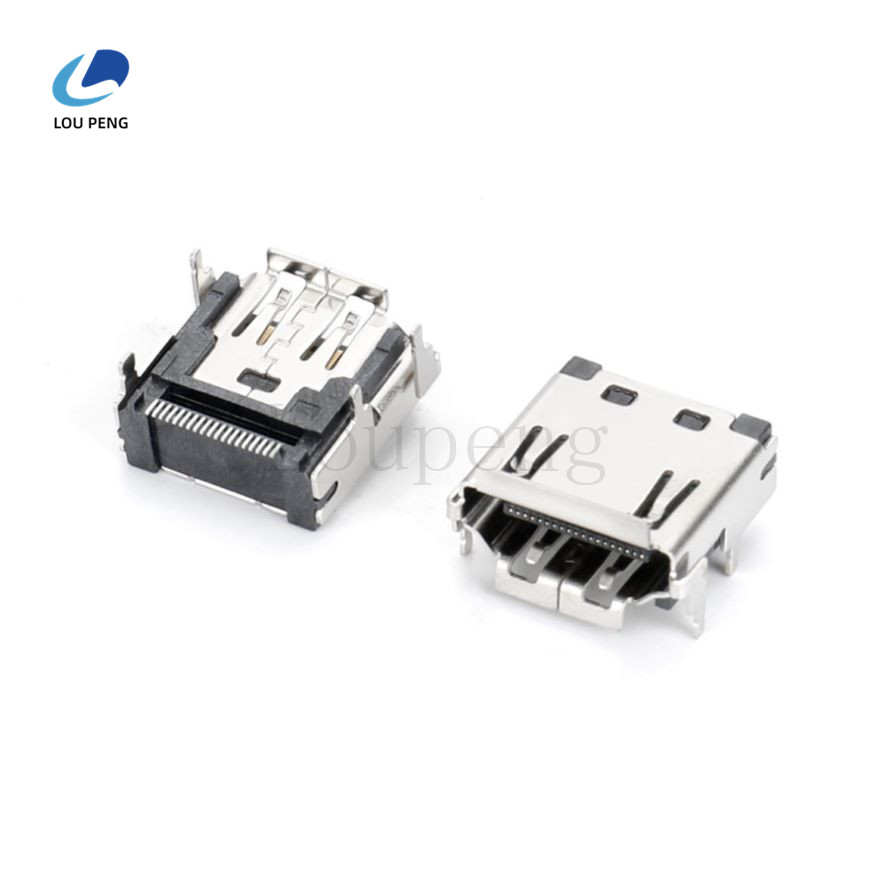

HDMI extended model B, stainless steel shell, nickel plated, four straight legs, four rebound pieces, flange height 9.35, pin length 1.4, half gold matte tin 15u

HDMI加长款B款不锈钢壳镀镍 四直脚四反弹片 翻边高9.35 针长1.4 半金雾锡15u
ꄴPrevious： HDMI connector splint type, nickel-plated shell
ꄲNext： HDMI male clamp type, gold-plated shell, with PCB board

Product Description
Feature:
* Perfect for installation & space saving
* Supports Resolutions up to 1080P
* Perfect for connecting HDMI Monitors, A/V Receivers, and HDTV
* 100% digital for the deepest color, sharpest picture and smoothest video
* Makes installation in tight spaces much easier
* Standard size, Type A 19-pin port and plug
* Gold plated connectors for best signal quality
* Extend the reach of your HDMI device
* Preserve original video quality



Electrical:
Contact Current Rating: 0.5A AC(rms)/DC
Voltage Rating: 40V AC (RMS)/DC.
Withstanding Voltage: 500V AC r.m.s.

Insulation Resistance: 100 Mega ohms Min.
Contact Resistance: 30 Milliohms Max.

Insertion cycle (maximum) : 10000

Welding temperature (Max) (°C): 260
Operating Temperature: -25ºC ~ +70ºC
