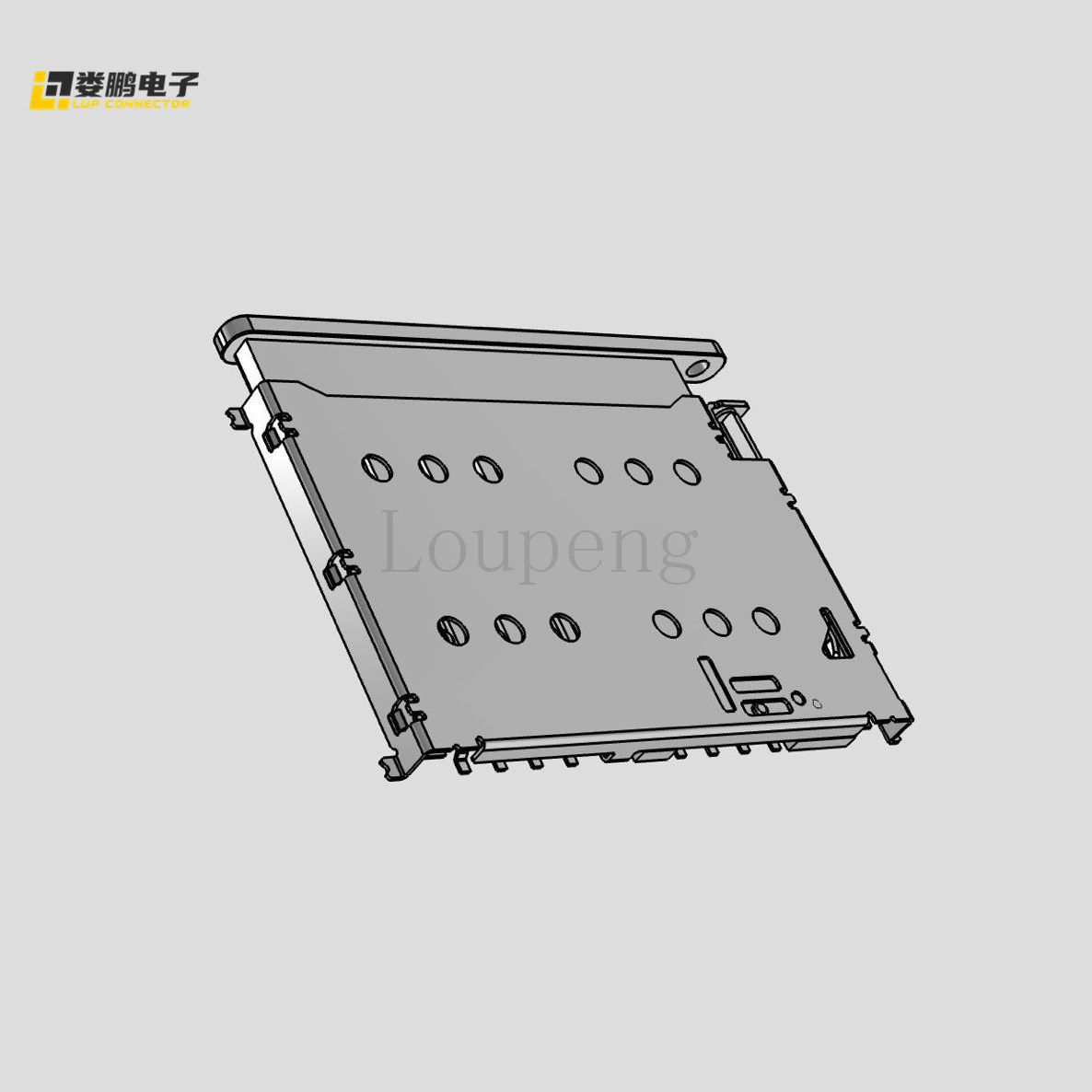

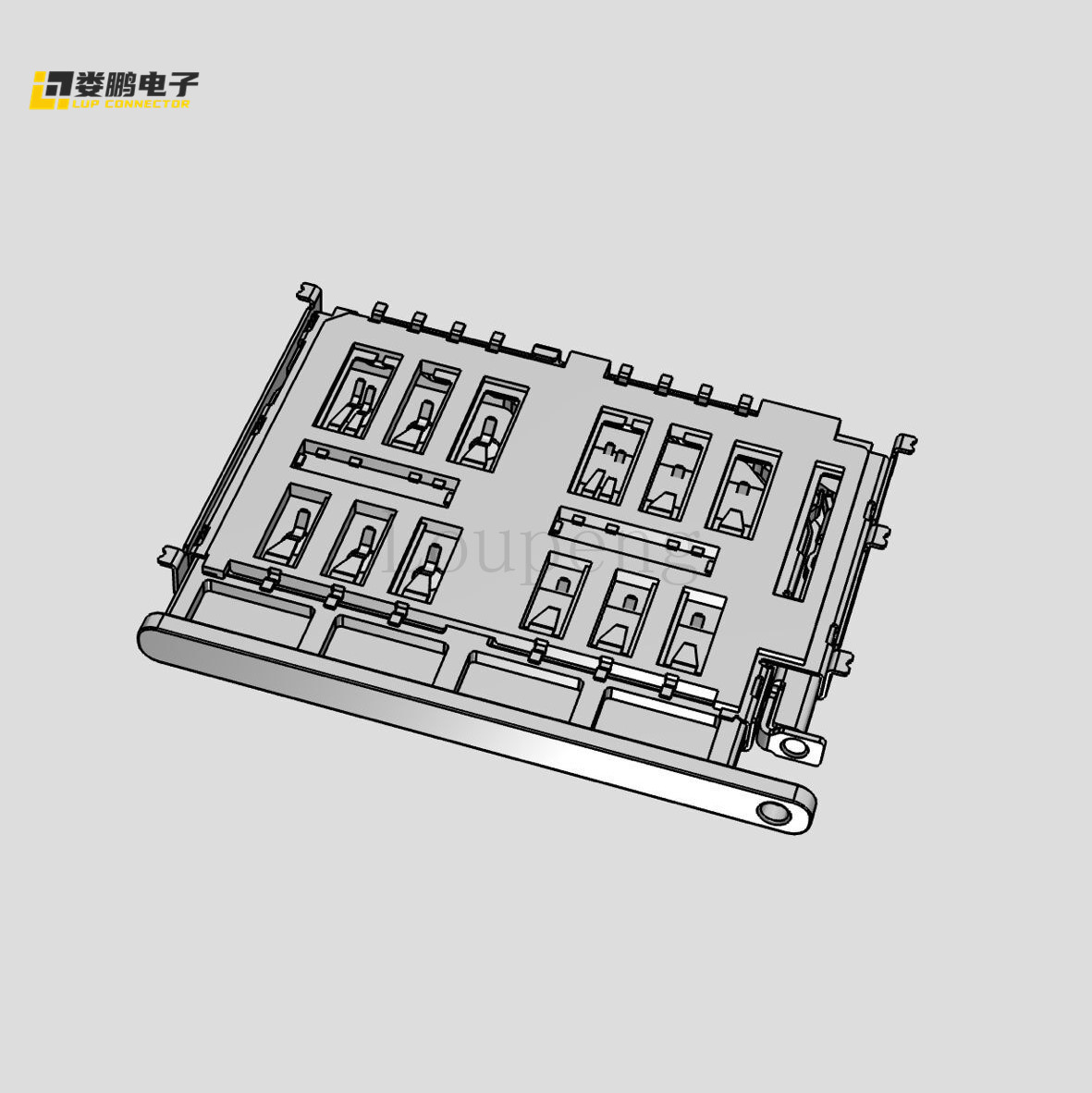

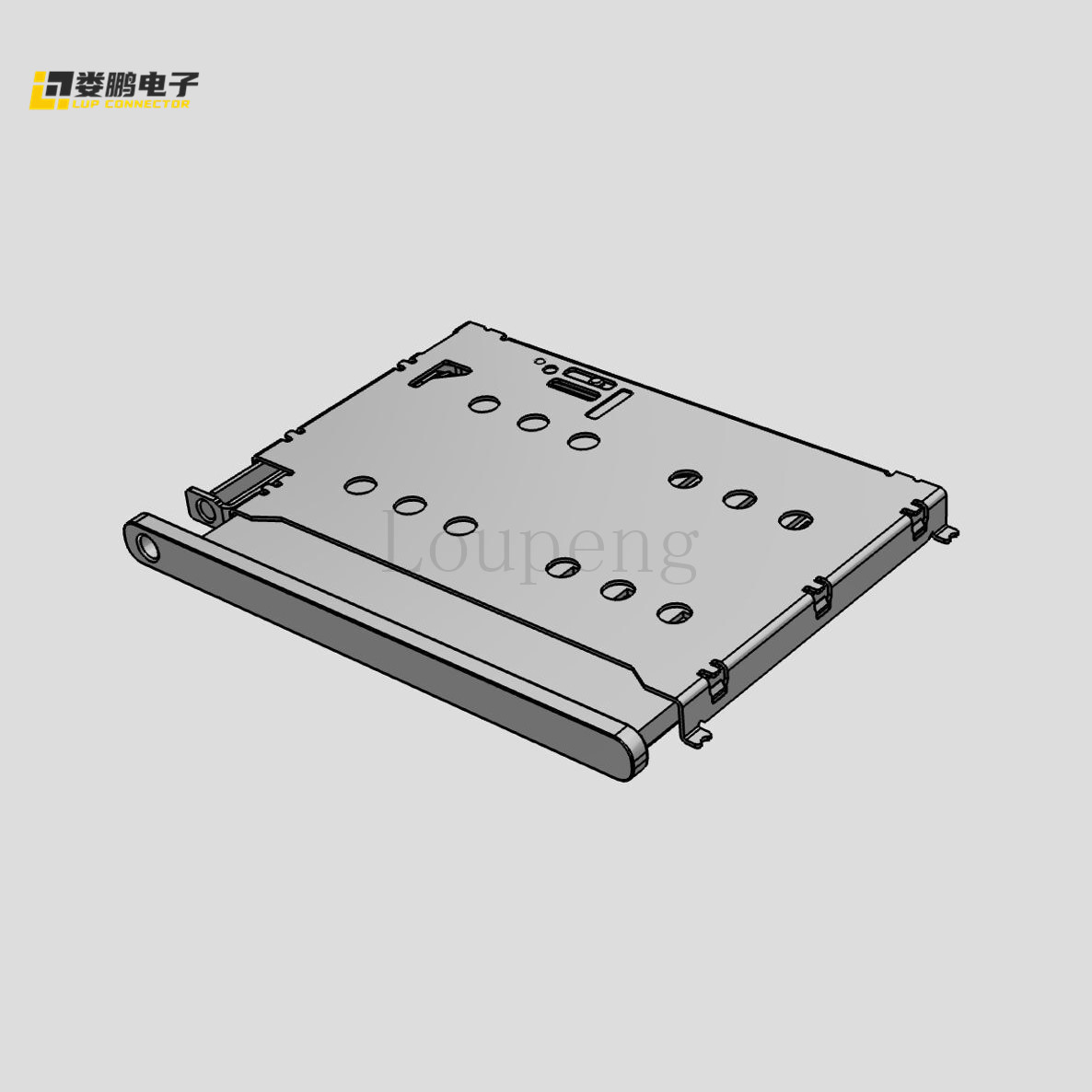

Nano SIM Card Connector 8PIN SMT Gold

Nano SIM Card Connector 8PIN SMT Gold Color Black ROHS Conform Packing Reel
ꄴPrevious： Micro SIM Card Connector 8PIN SMD GOLD
ꄲNext： SIM Card Connectors 6pin 2.54mm pitch SMD Gold

Product Description

Module Type: SIM (Secure Identity module)
Compatible card: 3FF SIM
Connector and terminal end connection: printed circuit board
Product Type: Connector
Plug-in rail slot: with
Removable connector: Yes
Card stop: with

Number of Positions: 8
Number of loading locations: 8
Type of card: Insert normally
Card detection switch: with

Catapult type: push-pull type

Terminal base material: selective gold plating, copper alloy
Terminal rated current (Max.) (A): 1

PCB mounting method: surface mount
Connector installation type: Board installation
Terminal positioning force: No
Connector stability rib: no, with

Center line (spacing) : 2.54 mm [.1 in]
Shell color: black
Shell material: thermoplastic

Operating temperature: -30 -- 85 °C [-22 -- 185 °F]

Circuit application: Signal
Durability class (Cycles): 5000

UL flammability rating: UL 94V-0
